Part No.: RAL58-50-20-3R

Generator Hook-up Enclosure, aluminum, natural finish.
23" (584mm) High x 20" (508mm) Wide x 9.3" (236mm) Deep.
CSA/NEMA Type 3R.
Suitable for 600V AC/DC, up to 400A continuous.
Designed for use with "Cam-Lok" panel mount connectors (sold separately).
Accepts up to 5 single pole connections.
Suitable for 1 phase applications (4 Cam-Loks, no blue in centre) or 3 phase applications (5 Cam-Loks).
Padlock option available (part number RAL-PDLK-1).

Applications - generators, load bank, rental equipment, cell-sites, concerts, sound stages, movie-making, television production, sporting events, permanent installations (interior and exterior) and conventions.

Qty:
	Add to quote cart

RAL58-50-20-3R - Sales Drawing – Technical Info

RAL58-50-20-3R - Specifications

Cam-Lok Connectors:

Please select from the following options:

Colour:

Black

Red

Blue

White

Green

Receptacle (lower portion):

Male

Female

Connection (upper portion):

Double Set Screw (Cable Size #2 AWG – 4/0)

1/2"-13 x 3/4" long threaded stud

Certification records:

- Class 3211-07 (Industrial Control Equipment - CDA) RangeRack Certification Record
- Class 3211-87 (Industrial Control Equipment - USA Standard) RangeRack Certification Record

All aluminum, no rusting or corrosion, lightweight
4 sturdy mounting tabs

Exposed to harsh climate, this enclosure was installed in 2004, withstood the test of Montreal winters and is still like new!

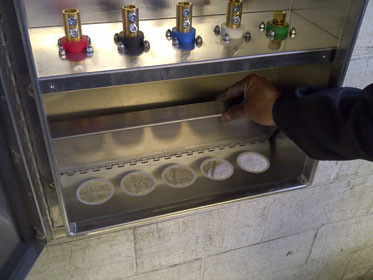

Removable upper safety plate includes warning sticker Hinged bottom plate closed Tab on lower portion of front door keeps hinged bottom plate securely shut when the front door is closed. No loose fasteners or threads to ice up!	Hinged bottom plate open, showing 5 x 2.5” diameter entry ports for cable entry For safety during operational use, the hinged bottom plate is open (to allow for cable entry) and the front door can be shut and latched securely


The door gasket is microcellular urethane foam with excellent memory (compression set resistance) Mounting tabs on the bottom include slotted holes for fast installation	Cam-loks installed (sold separately) Suitable for 1 phase applications (4 Cam-Loks, no blue in centre) or 3 phase applications (5 Cam-Loks, as shown)


Cam-loks (top side) come with double set screw (eg; red as shown) or ½” threaded stud (eg; green as shown) Cam-loks (bottom side, not shown) are male or female Polyethylene grommeting protects sharps edges (bottom) on entry ports	Keyless latch opens with screwdriver or coin, no keys to lose or have ice up in the event of harsh weather

Padlock option available
